SU series 64 points I/O precautions
Question
I am trying to use a 64-point I/O module for the SU (D4) series.
Are there any precautions?
Answer
Communication modules such as H4-ECOM100 cannot be installed behind the 64-point input / output module.
Be sure to install it in front of the 64-point input / output module.

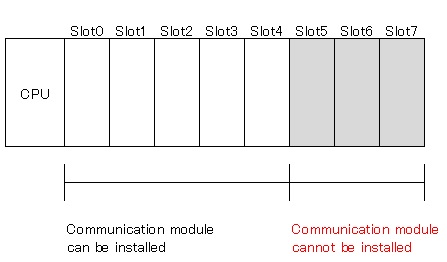

The following modules cannot be installed in slots 5, 6 and 7 of the base on which the 64-point input / output module is installed.
Install these modules in slots 0-4 of the base (CPU-equipped base).
| Module name | Model number | remarks |
|---|---|---|
| Serial communication module | U-01DM / D4-DCM | Cannot be attached to the expansion base |
| Remote I/O | U-23RM | |
| U-01KI | ||
| U-02RM / D4-RM | ||
| U-03RM | ||
| 4-loop temperature controller | U-4LTC | |
| Ethernet communication | H4-ECOM / H4-ECOM100 | |
| H4-ERM / H4-ERM100 | ||
| PID coprocessor | F4-16PID | |
| High speed counter | H4-CTRIO |
