How to connect HMI (Touch Panel)
Question
I would like to connect HMI to JX-Series.
Can I use HMI made by JTEKT Electronics or other companies?
Answer
HMI that support the Modbus/RTU protocol can be used as connected devices.
How to use with GC-A2 series
Our company’s GC-A2 series can be used.
Set the panel settings as follows.
(Please match the communication standard to the port to be connected)
Set the panel settings as follows.
(Please match the communication standard to the port to be connected)
JX-BASIC Wiring diagram
Please use the EA-2CBL cable when connecting to the RS-232 port.
Please use the cable connection diagram below when connecting to the RS-485 port.
JX-BASIC-EX2 Wiring diagram

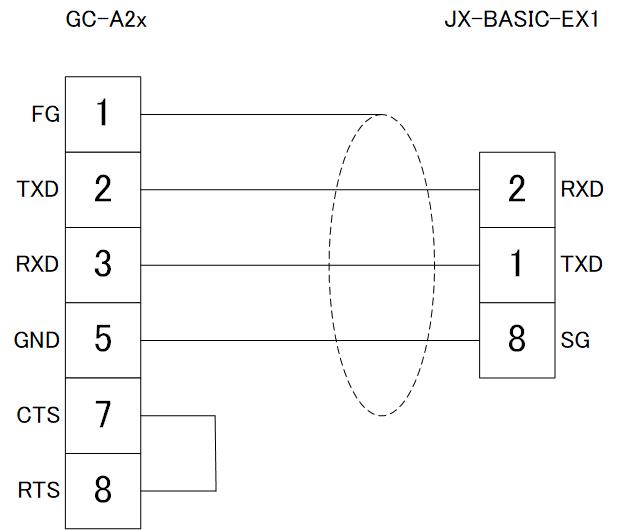

Please use the cable connection diagram below when connecting to the RS-232 port.
Please use the cable connection diagram below when connecting to the RS-485 port.
Modbus Address
